Reference Grade OLED Monitoring from Production to Post

The DM220 is a high-contrast 22" OLED monitor designed for use in color critical production and post-production applications. Industry leading fast mode processing, a durable all metal chassis, our most advanced feature set, and a compact and lightweight form-factor make the DM220 an exceptional reference grade monitoring solution for any environment.

Color Management

FSI’s 3rd generation Color Fidelity and LUT Interpolation Engine (CFE3) houses a multitude of calibration and Look LUT memories for highly accurate color reproduction and effective look management. Instantly select from Rec709, EBU, SMPTE-C, DCI P3, Rec2020 Emulation*, Native Wide Gamut, and Custom User Generated color spaces.

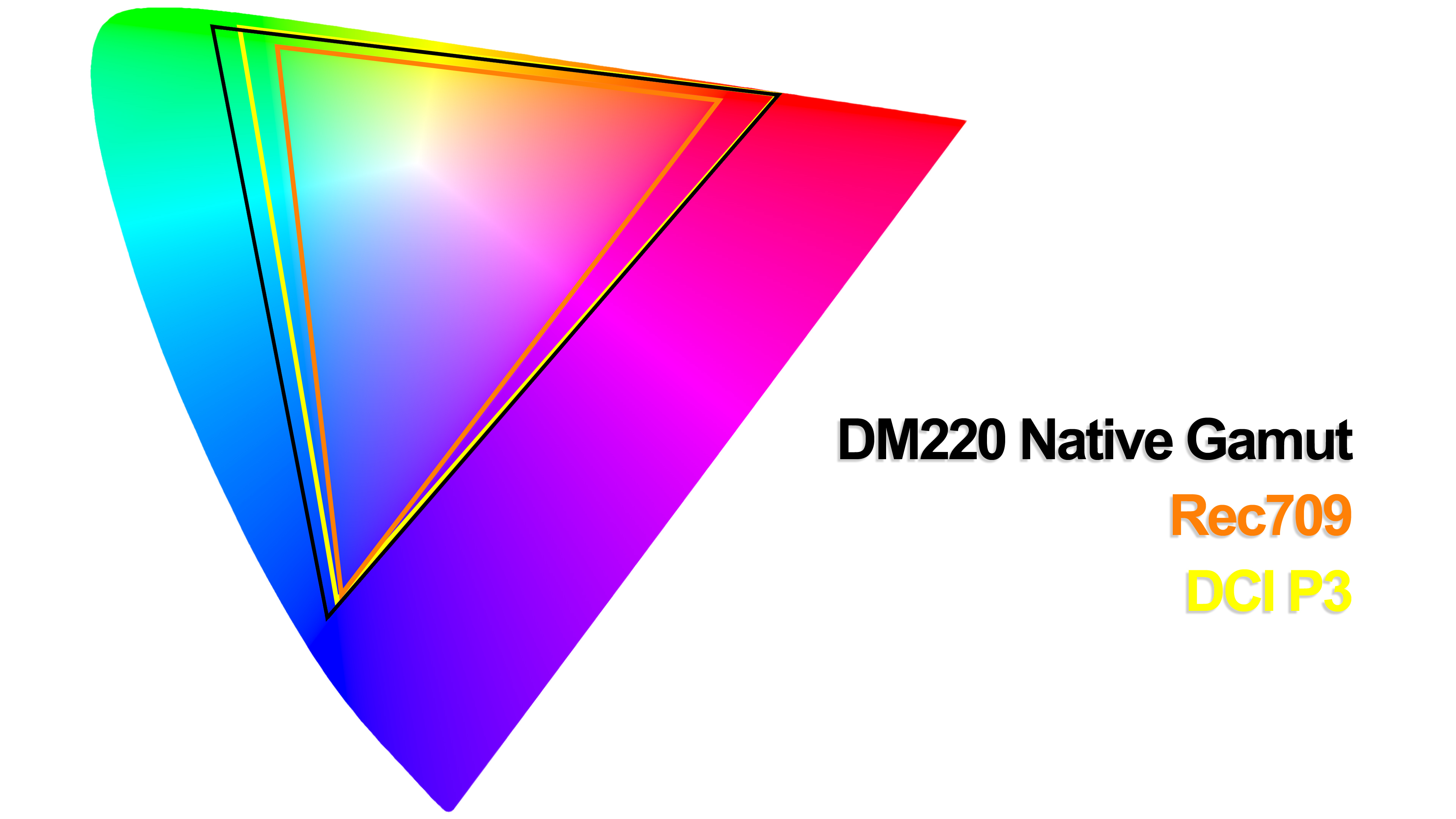

*Does not fully cover Rec2020 color space.

Additional gamma, peak luminance, and color temperature toggles further add to the versatility of DM Series Monitors.

DM series monitors support video range, extended range, and full range monitoring with simple menu based toggles.

CFE3 features industry leading tetrahedral LUT interpolation for greater accuracy and visual performance than hardware utilizing trilinear LUT interpolation.

Trilinear Interpolation

Tetrahedral Interpolation

Calibration

FSI monitors come pre-calibrated from the factory and all DM series monitors support highly accurate volumetric Auto Calibration for recalibration over time.

Simply plug a supported probe directly into the monitor and the advanced AutoCal routine will profile the monitor and use volumetric data to accurately target a very wide variety of available color management selections. 3D and 1D LUTs are calculated and saved on the fly as color management selections on the monitor are made, making for one simple and unified calibration process, all without requiring a computer.

Learn more about AutoCal here.

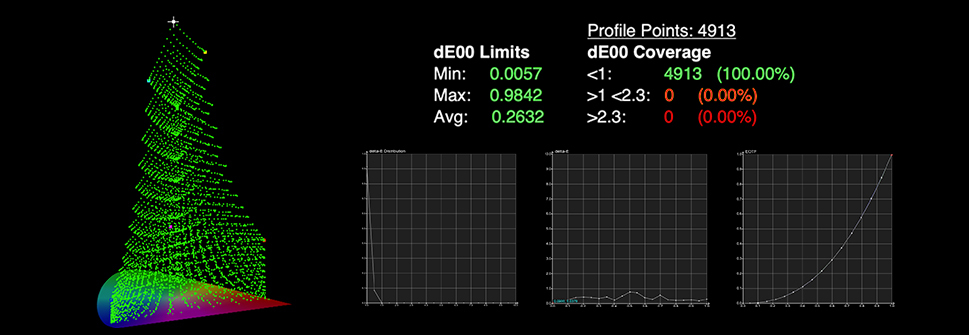

How well does it work? See sample DM220 AutoCal results here (.pdf download).

Third Party Calibration

DM series monitors are also fully compatible with popular 3rd party calibration solutions including Calman, LightSpace, and ColourSpace. Quickly and easily perform your own custom 3D LUT based calibration with any program capable of saving into FSI’s calibration LUT format.

Software Integration

Powerful DM series features are supported by select applications including FSI’s DM Series IP Remote Utility, Pomfort’s Livegrade Pro, QTake's Grade Module, and Assimilate Live Assist and Live Looks.

On-set Color Management

Real-time LUT updates using compatible software without the need for additional standalone LUT management hardware. All you need is a camera, computer, and a monitor.

ScopeStream

The world's first real-time Waveform and Vectorscope transmitted directly from your monitor to your computer with no additional equipment needed.

Mac and PC compatible FSI IP Remote Utility.

Frame Capture

Capture and save full resolution reference still frames from incoming video signals.

Look / DIT LUTs

Upload and store up to 16 3D Look / DIT LUTs and instantly toggle between them using the up and down buttons.

Second Screen Output

Mirror what you see on screen to downstream equipment. Apply LUTs on DM Series monitors and other downstream monitors simultaneously.

Second screen outputs work in addition to standard loop through outputs allowing you to simultaneously output clean and manipulated images.

Zero Delay Fast Mode

Zero Delay Fast Mode makes DM Series monitors an ideal choice for applications requiring instantaneous video processing speed in on-set, studio, and post environments.

When activated, the total latency between receipt of signal and onscreen display is less than 1 field.

See what functions are available with Fast Mode enabled.

Image Flip

DM Series monitors are capable of multiple Image Flip modes. You can quickly toggle through available modes including: Vertical, Horizontal, and Vertical + Horizontal.

Image Flip works on all inputs and is mirrored downstream via second screen output.

Cross Conversion

DM Series monitors come equipped with cross conversion capability. This allows you take DisplayPort / HDMI / DVI signals and convert them to SDI for output.

3rd Generation Focus Assist

When activated this feature will highlight in focus areas with a trace color. The sensitivity of the focus assist feature can be adjusted using the H POS rotary knob. The weight (transparency) of the focus assist feature can be adjusted using the V POS Rotary knob. The color of the focus assist trace can be adjusted using the REF POS rotary knob. Select from White, Black, Red, Green, Yellow, Blue, Magenta, and Cyan.

Advanced Real Time Waveform & Vectorscope for DM Series Monitors

DM Series Monitors have Real Time Waveform and Vectorscope that update every frame. Scope position, background, size, and scale can be adjusted independently using the rotary knobs on the face of the monitor. Real Time scopes work in all processing modes including Zero Delay Fast Mode.


HDR waveform monitor view for use with PQ signals.


Use concurrently with markers or timecode.


Transparent, Translucent, or Solid background.


User selectable graticule modes: IRE, Voltage, 10bit Digital Levels, HDR WFM.


Independently positionable and resizable.


Adjust all scope settings instantly with rotary knobs, no need to access menus.

Customizable Multi-Color Waveform

Real Time Waveform has 6 adjustable thresholds that can be individually set to Black, Red, Green, Yellow, Blue, Magenta, Cyan, or White.

Each graticule mode can be independently configured.


IRE Mode Standard


IRE Mode Custom Thresholds


HDR Mode Custom Thresholds


Digital Levels Custom Thresholds

Video Scopes

In addition to Real Time Scopes a wide variety of additional scopes and meters are available. Display up to two scopes on screen at a time. Scopes can be positioned in any of 6 on-screen positions. When using two scopes the scope windows can be stacked horizontally or vertically depending on your preference. Video scopes work across all inputs, even DVI.

RGB Parade

Parade waveform. Adjustable parade intensity. Levels above or below 100IRE show in white for easier identification.

Audio Meters

This monitor features several audio metering tools as well as the ability to disembed any single channel or stereo pair of audio to the monitor’s internal speakers or audio line out. Disembedded audio is always delayed by the exact amount of video processing time to ensure proper lip-sync.

Horizontal Audio Level Meters

Display 2, 8, or 16 channels of audio arranged in audio groups or stereo pairs with real-time numerical display of dB levels per channel. Meters feature adjustable Alignment Level, Permitted Max Level, and Peak Hold Time. Select between True Peak, PPM Type I, or PPM Type II ballistics. Meters will indicate NO DATA if an audio group is not embedded in the signal to differentiate it from audio channels that may be mute, but still embedded.

Vertical Audio Level Meters

16 channel audio level meter display with adjustable Alignment Level, Permitted Max Level, and Peak Hold Time. Select between True Peak, PPM Type I, or PPM Type II ballistics. Meters will indicate NO DATA if an audio group is not embedded in the signal to differentiate it from audio channels that may be mute, but still embedded.

CIE Scope

A dedicated function that maps full frame signal data onto your choice of CIE1931 x,y or CIE1976 u’,v’ diagrams. Signal information is shown relative to your active color space and can be compared to a selectable secondary color gamut.

Measurement (8 & 10bit)

Get precise real-time YRGB measurements, both as a percentage and 8 or 10bit data values, of any point or sample area within your incoming signal. Set a spatial and temporal reference and compare with any other point to quantify the difference in values between any two points. Also quantify the difference in points as an F/stop value.

CIE Measurement

Visualize any point or sample area within your incoming signal on your choice of CIE 1931 x,y or CIE1976 u’,v’ diagrams. Values are shown relative to your current operating color space and regardless of diagram mode R’,G’,B’, Y%, x,y,u’,v’ values are reported at all times. As with the standard measurement mode a reference position can be selected and compared to any other position. The difference between current and reference positions is also quantified with a dE2000 value.

Video Data Analyzer

Provides real-time readout of video data at the pixel level in your choice of decimal or hexadecimal values. Can show pixel level information as YCbCr or RGB as well as 8bit or 10bit.

This feature can be used in combination with the H/V delay mode for horizontal and vertical blanking data analysis.

Interlaced Signal Monitoring

The DM220 has the unique ability to replicate interlaced video accurately on screen making it ideal for spotting quality control concerns like field reversals. The DM220’s OLED panel is also not susceptible to the fast onset TIR & after-image flicker that occurs on many IPS LCD panels when trying to simulate interlaced video accurately on screen.

Markers

Choose from a wide assortment of standard markers and safety areas that can be displayed as lines, translucent overlays, or solid overlays. Lines and overlays have selectable colors for instant customization.

Don't see the marker you need here? Send it to us as a 1920x1080 .bmp file and we can add it in a future firmware update.

1:1
1.85:1
2.4:1
2.35:1
2.39:1
2:1
3.125:1
4:3
4x3 CC
6.25:1
9:16
13:9
14:9
14:9 CS
15:9
16:9
16:9 in 4:3
17:9
32:9
ADOBE
DISCOVERY
DISCOVERY V2
DISCOVERY V3
DISCOVERY V5
4x3 DPP
16x9 DPP
HISTORY
LIFETIME
NATGEO
NBC 2016
OUTDOOR
OXYGEN
SYMMETRY GRID
TELE QUEBEC
TRAVEL
TWC 2013
TWC 2014
TWC 2015
TWC SAFETY
VFRAME L
VFRAME R
WEATHER
WS

Crosshatch

Generate an onscreen grid overlay with the Crosshatch function to help with camera pitch and angle relative to screen content.

Custom Graticules

Create custom rectangular markers quickly with the Custom Graticules feature that generates four movable lines on screen. Graticule line position and span between lines is reported for easy reference.

Live Side-By-Side Monitoring

FSI's unique live side-by-side monitoring feature allows for mixed formats, mixed frame rates, and even mixed input types to be viewed together in PAP, PIP, or POP configurations.

Split-Screen Viewing

Horizontal and vertical split-screen viewing with adjustable split positioning is also possible with two sources that share the same resolution and frame-rate.

Source 2
Source 1

Lum Coloring (Adjustable Exposure Check)

Adjustable false color display of luminance values. 4 adjustment points allowing you to establish specific target areas to be shown in false color or greyscale.

Timecode

Size and position adjustable onscreen display of VITC1, VITC2, or LTC timecode pulled from SDI signals.

Tally Lights & Record Status Tally

Tally Light or on-screen indication of camera record flag status pulled from SDI ancillary data. Lets you know when your camera is recording without needing additional equipment.

*Not compatible with all cameras. Camera must output recognized SDI flag. AM420 and AM550 have on-screen tally only.

Zoom Modes

Pixel Zoom

For HD signals. Allows for highly adjustable artifact free zoom on any section of the image.

Zoom

For letterboxed SD content. Zooms in while preserving aspect ratio so that a 16:9 portion of the SD image is scaled full screen.

DSLR Zoom

Scales DSLR output so that only the portion of the image that will actually be captured to video is shown. Works with both SD and HD DSLR output.

Full Screen

Stretches the incoming signal to fill screen, built for use primairly with rasterizers that output 1024x768 signals intended to be stretched to 16:9 by a connected display.

CX Scale

Centered and zoomed-in display of the gate check output from a Codex ARRIRAW Recorder. This allows for easy fullscreen monitoring of the gate check output.

Overscan

5% Overscan Display.

Pixel Mapping

Allows for 1:1 and 2:1 pixel mapping of sources when their resolution is different than the native resolution of the panel. This feature is also capable of scaling 2K signals to fit or be shown 1:1 with the ability to move left to right so any portion of the 2K image can be shown 1:1.

1:1 Pixel Mapping (SD)

2:1 Pixel Mapping (SD)

1:1 Pixel Mapping (720p)

Pixel Mapping (2k Source)

SD Aspect Ratio & PAL SD FHA

Allows users to toggle from 4:3 to anamorphic display of SD signals. Can be combined with the pixel mapping feature for proper display of PAL SD FHA signals.

Anamorphic Desqueeze

For use in production environments where an anamorphic lens is in use. Anamorphic desqueeze ratios available include 1.3x, 1.5x, 1.66x, 1.8x, and 2.0x in both standard and magnified viewing modes for all ratios.

Blue Only, Red Only, Green Only, and Monochrome

Blue Only, Blue Only Mono, Red Only, Red Only Mono, Green Only, Green Only Mono, standard Monochrome

Onscreen Alarms

Allows for unobtrusive signal monitoring with alarm window only appearing in case an actual alarm condition is met. Available alarms include adjustable IRE threshold exceeded, RGB legal levels exceeded, video black or video blue on screen for extended time, audio loss with adjustable time-without-audio trigger setting, and audio out of phase warning.

H/V Delay

Horizontal and Vertical delay function with auto brightness increase to make analyzing vertical and horizontal blanking areas easier.

AFD Reader

The Active Format Description reader provides both a textual readout of AFD data as well as corresponding markers highlighting the information contained within the AFD code.

Safety Broadcast

Control Room and QC station monitoring mode that allows for simultaneous display of Timecode, Source ID, 2 channels of audio, and alarms.

UMD/OMD Display

Manual or remotely controlled source ID display on screen.

Log Monitoring Modes

C-Log, S-Log, S-Log2, S-Log3, and BMD-Log monitoring modes allow for rough normalization of C-Log, S-Log, S-Log2, S-Log3, and BMD Film Log signals.

Original
Log Monitoring Mode

HDR Preview

These monitoring modes, while not intended for HDR mastering, provide a simple and cost effective way to preview HDR in production environments and quality control applications.

  • HLG (Hybrid Log Gamma).
  • ST2084 clipping at approximately 300nits.
  • ST2084 with a soft roll. This setting allows operators to visually distinguish all code values present in a PQ signal.

A guide on using HDR Preview modes is available here.

SDR
HDR Preview

3D Disparity

A disparity view highlighting the difference between SDI1 and SDI2 inputs. Sources must be the same frame rate, resolution, and genlocked.

Still Frame

Pause on a single frame of an incoming source with a simple button press.

LED Lights

Allows users to turn off the monitor keypad's LED Lights for optimal viewing in dark envrionments.

Luminance Interval

Optional power saving feature especially useful in control room applications. Monitor will go into low power draw standby mode when no signal is present for the amount of time specified.

Remote Control

The IP Remote Utility can be used to remotely toggle functions, switch inputs, and navigate the menu on Flanders Scientific monitors using your Mac or PC's keyboard, mouse, or control panel. Also available for iOS devices.

GPI Contact Closure is also supported.
