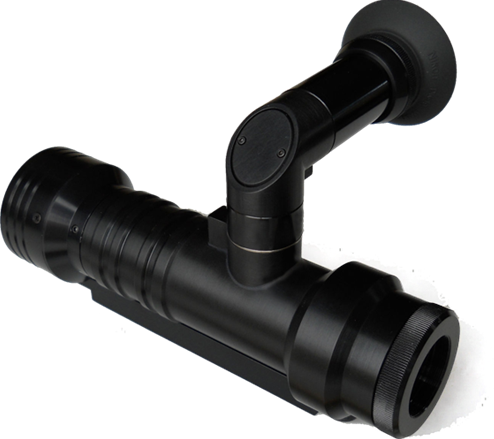

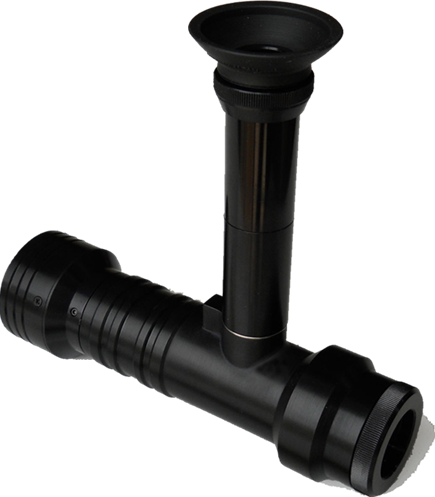

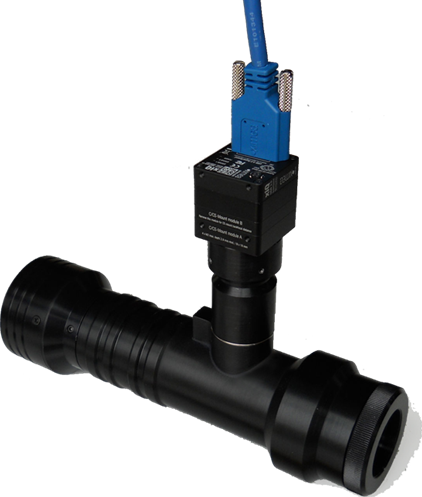

Colorimetry Research CR-200
CR200
$6,990.00
Drop Ships from Manufacturer
Designed for PERFORMANCE
Ruggedly constructed, the CR-200 housing is machined aluminium and stainless steel, and can withstand high acceleration rates for the most demanding motion positioning systems and environments. All optical components are fixed to ensure that no optical misalignments occur due to vibration, shock or high acceleration/ deceleration rates. The CR-200 is completely solid-state with no mechanical shutter or moving parts to ensure high reliability and long MTBF. It weighs only 1 pound (0.45 kg), and it is the perfect tool for display inspection or for mounting on fast moving XYZ tables. Its small size and shape allows for several instruments to be mounted in the same motion control system and the simultaneous measurement of several spots in the same display.
Versatile INTERFACE options
The CR-200 is powered directly from any USB port and consumes only 120 mA at 5V (600 mW), making it a portable instrument without the need for batteries. It is a USB 2.0 compatible device, remotely controlled by the host software from any personal computer, laptop or net book. As an option, the CR-200 can be controlled by an Ethernet 10BASE-T/100BASE-TX IEEE-802.3 compliant connection or a RS-232 port.
Optional EXTERNAL TRIGGER Port
The CR-200 can be equipped with an External Trigger Port. The External Trigger Port/Sync Input enables remote measurement activation from either a push button or a peripheral device, while the External Trigger Port/Sync Output allows synchronization signals to measure strobes/pulsed lights, and start/stop signals. This option is ideal for fast temporal events that need to be precisely synchronized with the measurement or data capture.
When ordering the CR-200 from Flanders Scientific the probe will be equipped with custom matrix matched selections for all current Flanders Scientific monitors in addition to any matrices provided by CRI.
Ruggedly constructed, the CR-200 housing is machined aluminium and stainless steel, and can withstand high acceleration rates for the most demanding motion positioning systems and environments. All optical components are fixed to ensure that no optical misalignments occur due to vibration, shock or high acceleration/ deceleration rates. The CR-200 is completely solid-state with no mechanical shutter or moving parts to ensure high reliability and long MTBF. It weighs only 1 pound (0.45 kg), and it is the perfect tool for display inspection or for mounting on fast moving XYZ tables. Its small size and shape allows for several instruments to be mounted in the same motion control system and the simultaneous measurement of several spots in the same display.
Versatile INTERFACE options
The CR-200 is powered directly from any USB port and consumes only 120 mA at 5V (600 mW), making it a portable instrument without the need for batteries. It is a USB 2.0 compatible device, remotely controlled by the host software from any personal computer, laptop or net book. As an option, the CR-200 can be controlled by an Ethernet 10BASE-T/100BASE-TX IEEE-802.3 compliant connection or a RS-232 port.
Optional EXTERNAL TRIGGER Port
The CR-200 can be equipped with an External Trigger Port. The External Trigger Port/Sync Input enables remote measurement activation from either a push button or a peripheral device, while the External Trigger Port/Sync Output allows synchronization signals to measure strobes/pulsed lights, and start/stop signals. This option is ideal for fast temporal events that need to be precisely synchronized with the measurement or data capture.
When ordering the CR-200 from Flanders Scientific the probe will be equipped with custom matrix matched selections for all current Flanders Scientific monitors in addition to any matrices provided by CRI.
*LightSpace CMS is sold separately.
*CalMAN is sold separately.
Specifications
| Wavelength Range | 380 – 780 nm |
| Luminance Range | 0.002 fL to 6000 fL 0.002 fL @ Signal to Noise Ratio > 10, 20 seconds exposure 0.01 fL @ Signal to Noise Ratio > 10, 0.5 second exposure 0.01 fL @ Signal to Noise Ratio > 100, 20 seconds exposure 6000 fl @ Signal to Noise Ratio > 8000, 0.001 second exposure |
| Luminance Accuracy | ± 2 % @ 0.3 fL, 0.5 second exposure |
| Luminance Repeatability | 0.2 % @ 0.3 fL, 0.5 second exposure 1.5 % @ 0.03 fL, 0.5 second exposure 1.5 % @ 0.003 fL, 20 seconds exposure |
| Chromaticity Accuracy | ± 0.0015 x, y @ 0.34 Nits (0.1 fL), 0.4 second exposure ± 0.0015 x, y @ 0.069 Nits (0.02 fL), 20 seconds exposure |
| Chromaticity Repeatability | ± 0.0015 x, y @ 0.5 fL, 0.5 second exposure ± 0.0015 x, y @ 0.1 fL, 20 seconds exposure |
| Polarization error | ≤ 0.1 % |
| Synchronization frequencies | 10-500 Hz (Custom Synchronization from 10 Hz to 10 KHz available) |
| Exposure Time Range | 1 ms to 20 seconds |
| Power Requirements | 5V, 120 mA (600 mW) via USB 2.0 |
| Interface | USB 2.0, Ethernet, RS-232 |
| Weight / Mass | 1 pound (0.45 kg) 1.2 pounds (0.54 kg) with Viewfinder VO-201 |
